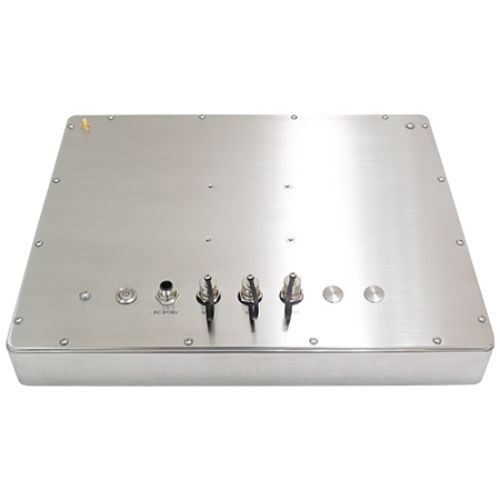

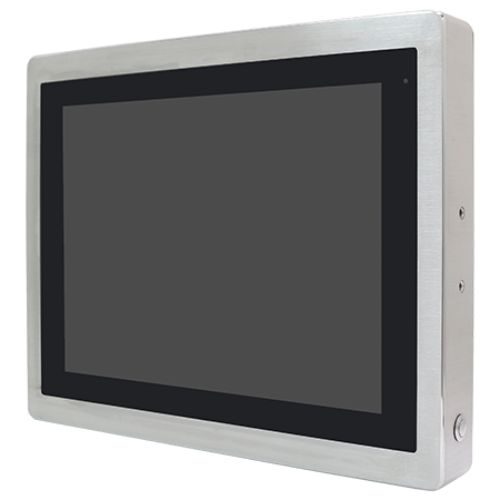

ViTAM-815P/R/G/H Information
———————-
[LCD]
‧ LCD Size：15″ TFT-LCD
‧ Touch Type：P: Projected Capacitive/ R: Resistive/ G: Glass
‧ Luminance(cd/m²)：Standard: 300 | High Brightness: 1000
———————-
[System]
‧ CPU：Intel Celeron N2930 Processors
‧ Power Consumption：ViTAM-815P:19W
‧ System Chipset：SoC
‧ System Memory：Onboard 4GB DDR3L SDRAM , up to 8GB(option)
———————-
[I/O Port]
‧ LAN：1 x M12 8-pin for LAN with waterproof cover and chain
‧ Power：1 x M12 3-pin for DC power with waterproof cover and chain | 1 x Power switch on the rear | 1 x Touch on/off button on the side
‧ Serial / Parallel：1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
‧ USB：1 x M12 8-pin for USB 2.0 with waterproof cover and chain
———————-
[Storage Space]
‧ HDD/SSD：1 x 2.5″ SATA3 HDD
———————-
[Expansion]
‧ Expansion Module：RFID module design on the front side(optional)
‧ Expansion slot：1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE (optional)
———————-
[Display]
‧ Backlight lifetime(hrs)：Standard: 70,000 | High Brightness: 50,000
‧ Contrast：Standard: 2000:1 | High Brightness: 800:1
‧ LCD Size：15″ TFT-LCD
‧ Luminance(cd/m²)：Standard: 300 | High Brightness: 1000
‧ Max. color：Standard: 16.7M | High Brightness: 262K (default), 16.2M (optional)
‧ Max. resolution：1024 x 768
‧ Viewangle(H°/V°)：Standard: 176 / 176 | High Brightness: 160 / 160
———————-
[Touch Screen(Option)]
‧ Interface：USB
‧ Light transmission(%)：Projected Capacitive Touch/ Glass: Over 90% | Resistive Touch: 80%
‧ Touch Type：P: Projected Capacitive/ R: Resistive/ G: Glass
———————-
[Power]
‧ Power input：DC 9~36V
———————-
[Mechanical]
‧ Construction：304 Stainless steel chassis(default) | 316 Stainless steel chassis(optional)
‧ Dimension(mm)：399 x 324 x 53
‧ IP rating：Total IP66/IP69K
‧ Mounting：VESA mount 75 x 75, Yoke mount for optional
‧ Net weight(Kgs)：7.4 kg
———————-
[Environment]
‧ Certification：CE/FCC Class A
‧ Operating temperature(°C)：0~50°C / -20~60°C for option
‧ Storage humidity：10 to 95% @ 40°C, non- condensing
‧ Storage temperature(°C)：-30~70°C
———————-
[Operating System]
‧ Operating System：Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB
———————-
[Ordering Information]
‧ Barebone：-
‧ Option：2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: | ● 2 x USB 2.0 ● 1 x USB 3.0 ● 1 x LAN (PoE for option) ● 1 x COM ● 1 x CAN
———————-
